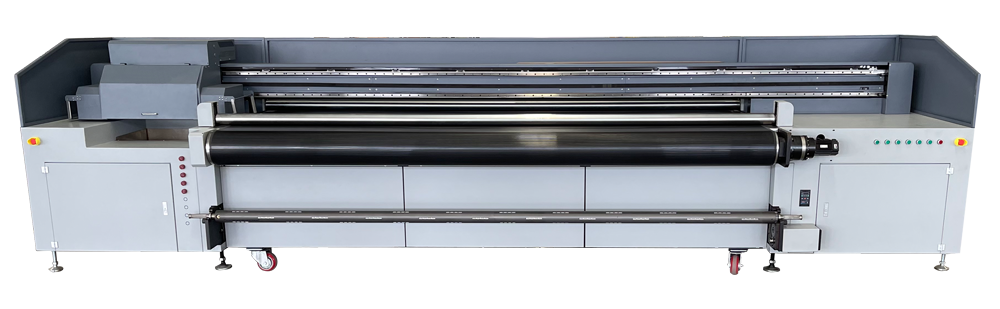

YC3200HR
High-end 3.2-meter-wide roll-to-roll UV-inkjet printer offers surpassing print quality. It stands up to any challenge, for high productivity and low maintenance cost. Ensures flawless media handling, always provide excellent print quality.






Printing table size

 3200mm



Max material weight

  50kg



Maximum material height

100mm




YC3200HR .png

Parameter

Specifications
Product ModelYC3200HR
Printhead TypeRICOH GEN5/GEN6/KM1024I/SPT1024GS
Printhead Number2-8 units
Ink CharacteristicsUV Curing Ink (VOC  Free)
LampUV  LED lamp
Printhead ArrangementC   M Y  K  LC  LM W V optional
Guide RailTAIWAN HIWIN/THK Optional
Working TableAnodized aluminum with 4-section vacuum sucking
  Printing  Width3200mm
   Coiled Media Diameter200mm
   Media  Weight80kg Max
Print InterfaceUSB2.0/USB3.0/Ethernet Interface
Media Thickness0-100mm, higher can be customized
Print Resolution & Speed720X600dpi4PASS15-33sqm/h(GEN6 40% faster than this speed)
720X900dpi6PASS10-22sqm/h
720X1200dpi8PASS8-18sqm/h
RIP SoftwarePhotoprint / RIP PRINT Optional
MediaWallpaper, flex banner, glass, acrylic, wood board, ceramic, metal plate, PVC board, corrugated board, plastic etc.
Media HandlingAutomatic Release/Take Up
Machine Dimension5610*1720*1520mm
Weight3000kg
Safety CertificationCE Certificate
Image FormatTIFF,JPEG,Postscript,EPS,PDF etc.
Input VoltageSingle Phase 220V±10%(50/60Hz,AC)
Working EnvironmentTemperature: 20℃-28℃ Humidity: 40%-70% RH
Warranty12 months exclude the consumables related to ink, such as ink filter, damper etc


Details

Adjustable Wheel.jpg

Aluminum Beam.jpg

g5 printhead.jpg

Top heavy Rubber Roller.jpg

THK Guide Rail.jpg

Adjustable WheelAluminum BeamGEN5 Printhead Top heavy Rubber RollerTHK Guide Rail

gen6 printhead.jpg

High quality gear.jpg

Tempreture control system for printheads plate.jpg

Secondary Cartridge.jpg

Printhead Anti-collision.jpg

GEN6 printhead

High quality gearTempreture control system for printheads plateSecondary CartridgePrinthead Anti-collision

RIP Software

Print Speed and Quality to Suit Your Production Needs


Featuring twelve high performance inkjet printheads in a staggered three row arrangement,

the IU-1000F prints edge-to edge on thin or thick boards.

 Meet fast turnaround times or produce high end signs and displays with multiple speed and performance options.



8 Front Plate (Spray Plate: SATA-8)







1H2C_4C1H2C_6C1H2C_4C+2WV1H2C_6C+2WV1H2C_2(4C)






1H2C_2(6C)1H2C_2(4C+WV)1H2C_2(6C+WV)1H2C_3(4C)1H2C_4(4C)






1H2C_4C_CWCV2H1C_4C_4WV2H1C_2(4C)



PRINTING SPEED:

Production quality          50sqm/h


High quality
40sqm/h


Super high-quality30sqm/h



 Application

Armstrong cellings.jpg


Blueback tiles.jpg


Ceramic tiles.jpg

Armstrong cellingsBannerBlueback tilesCanvasCeramic tiles

Chipboard tiles.jpg

Composite materials.jpg

Composite panel.jpg



Chipboard tilesComposite materialsComposite panelFibreboardGlass

Glazed tiles.jpg

Laminated chipboard.jpg


Lenticular plastic.jpg

Medium density fibreboard.jpg

Glazed tilesLaminated chipboardLeatherLenticular plasticMedium density fibreboard






MetalMirrorMuralPaperPlywood

PVC tiles.jpg

Self adhesive vinyl.jpg



3D wallpaper.jpg

PVC tilesSelf adhesive vinylStoneWood3D wallpaper
