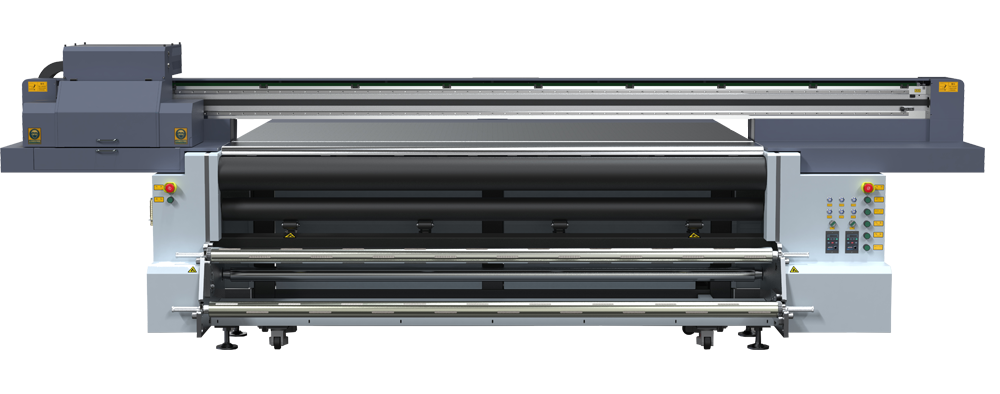

YC2513R
Professional series of 2.5-meter-wide flatbed with roll to roll UV digital printer. Effective solution to any flex materials and flat materials printing needs. Ensures flawless media handling and always excellent printing quality.






Printing table size

 2500mm



Max material weight

  50kg



Maximum material height

100mm





Parameter

Specifications
Product ModelYC2513R
Printhead TypeRICOH GEN5/GEN6/KM1024I/SPT1024GS
Printhead Number2-8 heads
Ink CharacteristicsUV Curing Ink (VOC Free)
Ink reservoirsRefillable on the fly while printing 2500ml per color
LED UV Lampmore than 30000-hours life made in Korea
Printhead arrangementCMYK LC LM W V Optional
Printhead Cleaning SystemAutomatic Cleaning System
Guide railTAIWAN HIWIN/THK Optional
Working TableVacuum Sucking
Printing Size2500*1300mm
Roller Material Width2500mm
Roller Material Diameter200mm
Print InterfaceUSB2.0/USB3.0/Ethernet Interface
Media Thickness0-100mm
Print Resolution& Speed720X600dpi4PASS15-33sqm/h(GEN6 40% faster than this speed)
720X900dpi6PASS10-22sqm/h
720X1200dpi8PASS8-18sqm/h
Life of printed image3 years(outdoor),10years(indoor)
File FormatTIFF,JPEG,Postscript,EPS,PDF etc.
RIP SoftwarePhotoprint / RIP PRINT Optional
Power Supply220V 50/60Hz(10%)
Power8500W
Operation EnvironmentTemperature 20 to 30 ℃,Humidity 40% to 60%
Machine Dimension4.57*2.98*1.46m
Packing Dimension5*2.25*1.55m 3.2*0.85*1.1m
Weight2000kg
Warranty12 months exclude the consumables related to ink, such as ink filter, damper etc


Details

Adjustable Wheel.jpg

Aluminum Beam.jpg

g5 printhead.jpg

Working platform.jpg

THK Guide Rail.jpg

Adjustable WheelAluminum BeamGEN5 Printhead Working platform
THK Guide Rail

gen6 printhead.jpg

Leadshine Servo Motor.jpg

Tempreture control system for printheads plate.jpg

Secondary Cartridge.jpg

Printhead Anti-collision.jpg

GEN6 printhead

Leadshine Servo MotorTempreture control system for printheads plateSecondary CartridgePrinthead Anti-collision

RIP Software

Print Speed and Quality to Suit Your Production Needs


Featuring twelve high performance inkjet printheads in a staggered three row arrangement,

the IU-1000F prints edge-to edge on thin or thick boards.

 Meet fast turnaround times or produce high end signs and displays with multiple speed and performance options.



8 Front Plate (Spray Plate: SATA-8)







1H2C_4C1H2C_6C1H2C_4C+2WV1H2C_6C+2WV1H2C_2(4C)






1H2C_2(6C)1H2C_2(4C+WV)1H2C_2(6C+WV)1H2C_3(4C)1H2C_4(4C)






1H2C_4C_CWCV2H1C_4C_4WV2H1C_2(4C)



PRINTING SPEED:

Production quality          35sqm/h


High quality
25sqm/h


Super high-quality20sqm/h



 Application

Armstrong cellings.jpg


Blueback tiles.jpg


Ceramic tiles.jpg

Armstrong cellingsBannerBlueback tilesCanvasCeramic tiles

Chipboard tiles.jpg

Composite materials.jpg

Composite panel.jpg



Chipboard tilesComposite materialsComposite panelFibreboardGlass

Glazed tiles.jpg

Laminated chipboard.jpg


Lenticular plastic.jpg

Medium density fibreboard.jpg

Glazed tilesLaminated chipboardLeatherLenticular plasticMedium density fibreboard






MetalMirrorMuralPaperPlywood

PVC tiles.jpg

Self adhesive vinyl.jpg



3D wallpaper.jpg

PVC tilesSelf adhesive vinylStoneWood3D wallpaper
