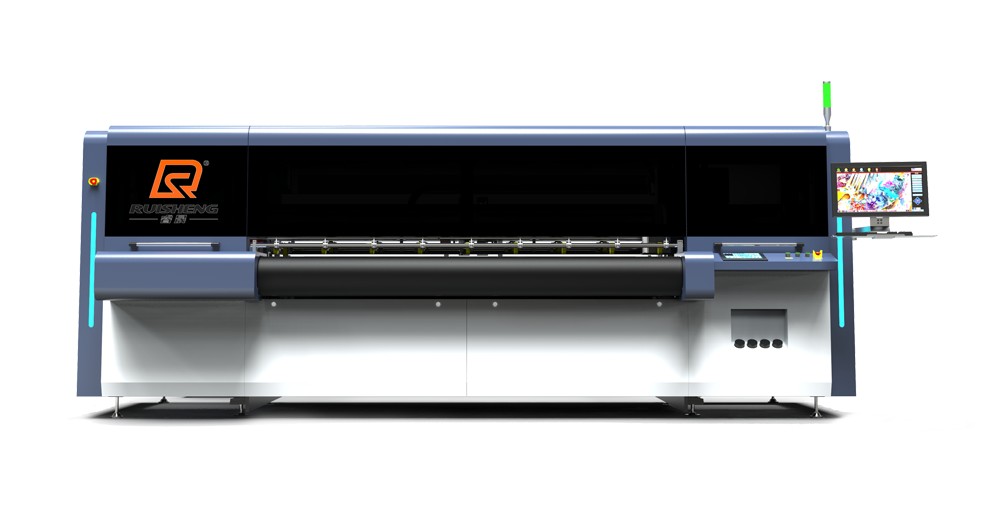

Name: RS2500 Corrugated Cardboard Digital Printer
SKU: 0



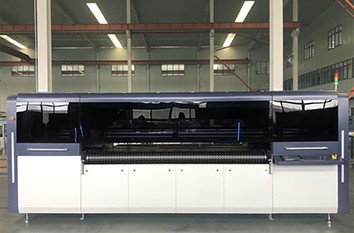

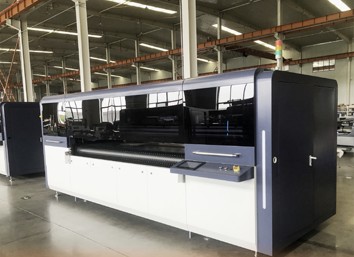

RS2500 Corrugated Cardboard Digital Printer

Product Parameter

Machine type	RS2500-E8	Ｃolor type	c、m、y、k
Printhead type	Micro piezoelectric high precision nozzle	Printing efficiency	Up to 600 sq. / h(excluding feed time)
Number of sprinkler heads	8	Printing rate	High-speed mode 100m/min at 600*300dpi
Ink type	Special water-based dye ink/Special water-based pigment ink/special UV ink	Material thickness	0-50mm
Nozzle height	2-4mm	Use software	Professional RIP software, professional printing software
Printing accuracy	Scanning mode ≥360*600dpi	Operating system	Windows 7/ Windows 10 64-bit operating system
Working environment	Room temperature 20-25℃, humidity 50%-70% no condensation	Power supply	Approximately 20KW; Power supply AC380±10%, 50-60HZ
Ink supply mode	Automatic continuous ink supply	Equipment size	L x W x H approx 5645x3750x2123(mm) (Please refer to the actual order)
Feeding method	Automatic leading edge feeding system, suction partition platform	Equipment weight	4000kg



RS2500 Corrugated Cardboard Digital Printer

Product Details Display

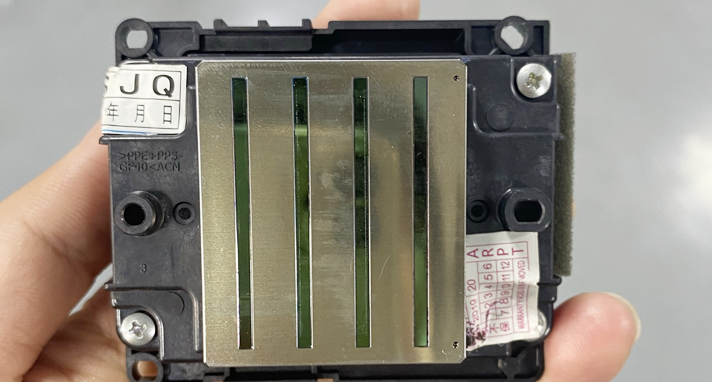

Epson i3200 Sprinkler Head

Ink nozzle high precision, good quality,

clear printing, high saturation, high resolution

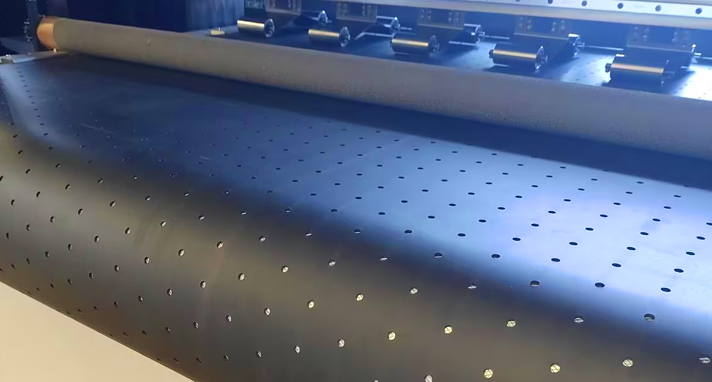

Industrial Conveyor Belt

The belt adopts automatic deviation correction scheme,

reasonable suction hole design,

firmly adsorbing in the transport of materials.

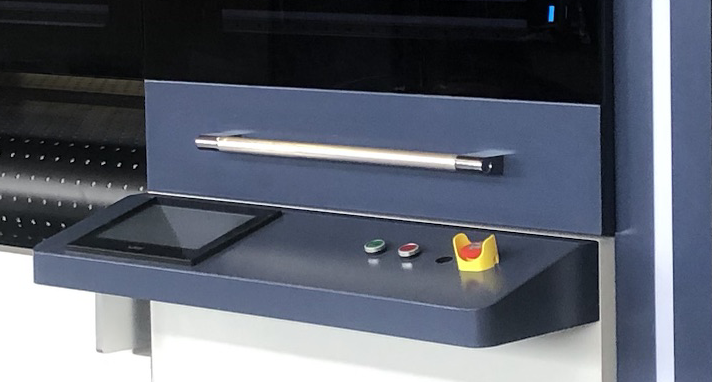

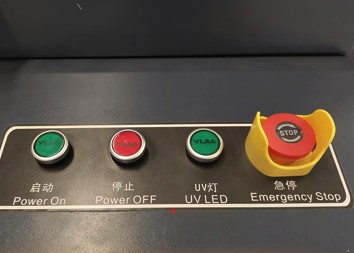

Intelligent Control System

The appearance is simple and beautiful, the

internal functions are complete, the operation is

simple and clear, and the use is safer.

Product Advantage


Intelligentize The whole operation process of the corrugated box printing machine is intelligent. Compared with traditional printing, plateless carton printing does not require plate making, printing down and repeated color matching.	Rapid Production Printing can be printed without turning on the plate, which has a very big advantage for rapid proofing and small batch replenishment or urgent order production.

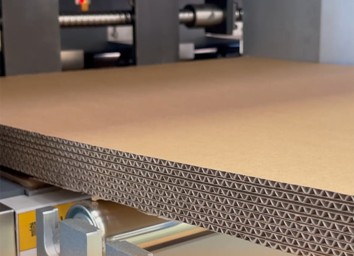

No Need For Plate-making Corrugated box printing machine is completelycontrolled by the computer output graphics directly printed on the corrugated box, saving the cost of plate making, but also savethe time of plate making.	Automatic Feed The equipment adopts beam lifting,automatic feeding can be accuratelypositioned to reduce errors, low noise, stable operation
