YC3321R UV Flatbed with Roll to Roll Printer
Professional series of 3.2-meter-wide flatbed with roll to roll UV digital printer. Effective solution to any flex materials and flat materials printing needs. Ensures flawless media handling and always excellent printing quality.

YC3321R UV Flatbed with Roll to Roll Printer





YC3321R UV Flatbed with Roll to Roll Printer

Printing table size

 3200mm


YC3321R UV Flatbed with Roll to Roll Printer

Max material weight

  50kg


YC3321R UV Flatbed with Roll to Roll Printer

Maximum material height

100mm



YC3321R UV Flatbed with Roll to Roll Printer

Specifications
Product ModelYC3321R
Printhead TypeRICOH GEN5/GEN6/KM1024I/SPT1024GS
Printhead Number2-8 heads
Ink CharacteristicsUV Curing Ink (VOC Free)
Ink reservoirsRefillable on the fly while printing 2500ml per color
LED UV Lampmore than 30000-hours life made in Korea
Printhead arrangementCMYK LC LM W V Optional
Printhead Cleaning SystemAutomatic Cleaning System
Guide railTAIWAN HIWIN/THK Optional
Working TableVacuum Sucking
Printing Size3300*2100mm
Roller Material Width3300mm
Roller Material Diameter200mm
Print InterfaceUSB2.0/USB3.0/Ethernet Interface
Media Thickness0-100mm
Print Resolution& Speed720X600dpi4PASS15-33sqm/h(GEN6 40% faster than this speed)
720X900dpi6PASS10-22sqm/h
720X1200dpi8PASS8-18sqm/h
Life of printed image3 years(outdoor),10years(indoor)
File FormatTIFF,JPEG,Postscript,EPS,PDF etc.
RIP SoftwarePhotoprint / RIP PRINT Optional
Power Supply220V 50/60Hz(10%)
Power8500W
Operation EnvironmentTemperature 20 to 30 ℃,Humidity 40% to 60%
Machine Dimension5.37*3.78*1.46m
Packing Dimension5.55*2.25*1.67m  4.3*0.85*1.22m
Weight3000kg
Warranty12 months exclude the consumables related to ink, such as ink filter, damper etc


YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

Adjustable WheelAluminum BeamGEN5 PrintheadWorking platformTHK Guide Rail

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

GEN6 printhead

Korea UV LED LampTempreture control system for printheads plateSecondary CartridgePrinthead Anti-collision

Print Speed and Quality to Suit Your Production Needs


Featuring twelve high performance inkjet printheads in a staggered three row arrangement,

the IU-1000F prints edge-to edge on thin or thick boards.

 Meet fast turnaround times or produce high end signs and displays with multiple speed and performance options.



8 Front Plate (Spray Plate: SATA-8)


YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

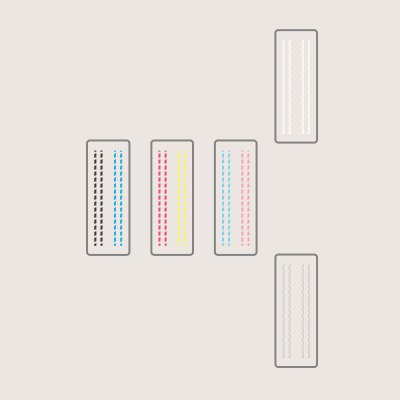

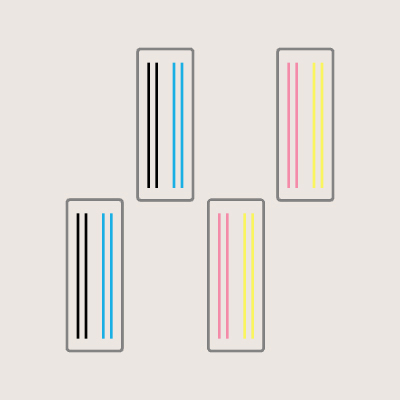

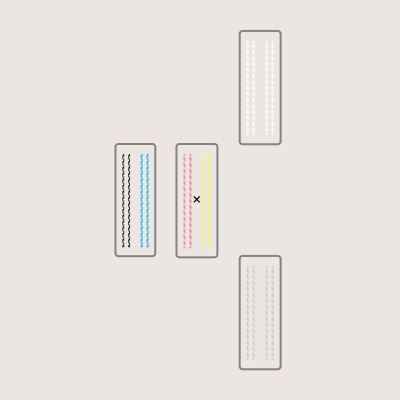

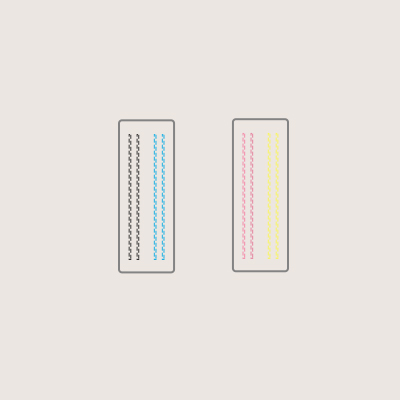

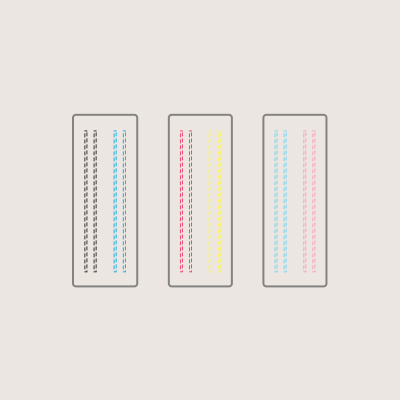

1H2C_4C1H2C_6C1H2C_4C+2WV1H2C_6C+2WV1H2C_2(4C)

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

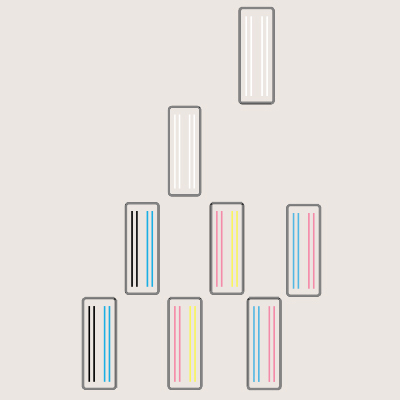

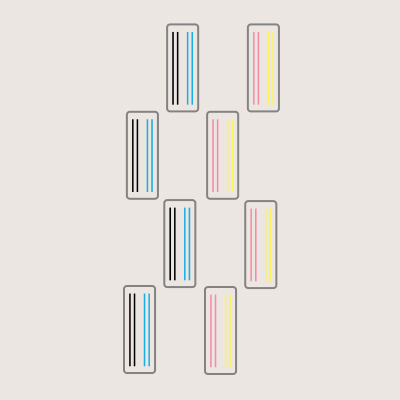

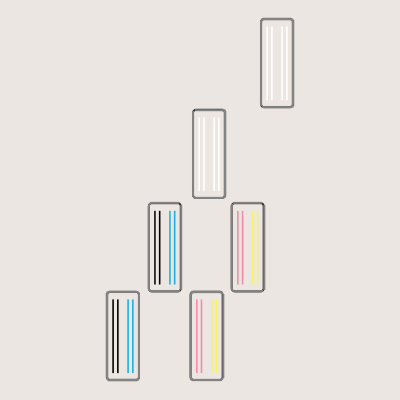

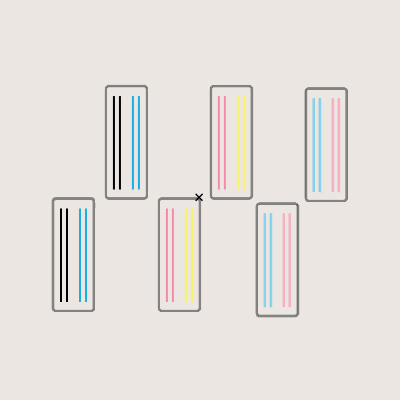

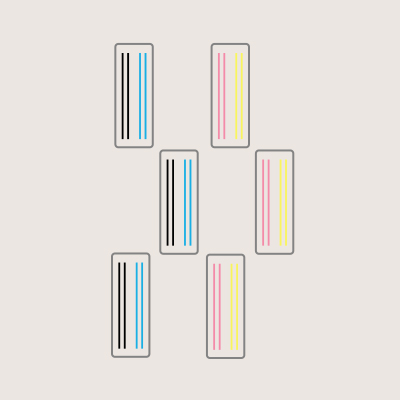

1H2C_2(6C)1H2C_2(4C+WV)1H2C_2(6C+WV)1H2C_3(4C)1H2C_4(4C)

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

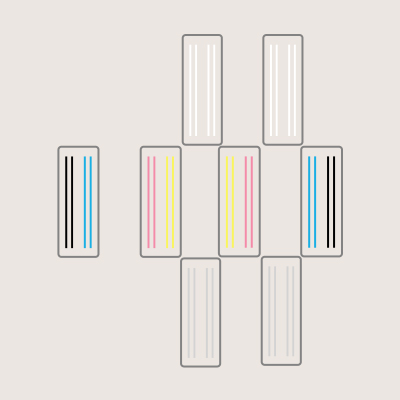

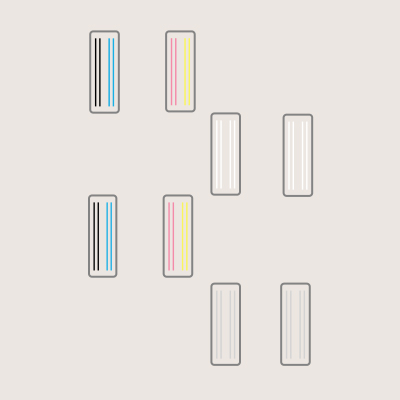

1H2C_4C_CWCV2H1C_4C_4WV2H1C_2(4C)



PRINTING SPEED:

Production quality          50sqm/h

     YC3321R UV Flatbed with Roll to Roll Printer

High quality
40sqm/h

     YC3321R UV Flatbed with Roll to Roll Printer

Super high-quality30sqm/h

      YC3321R UV Flatbed with Roll to Roll Printer


YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

Armstrong cellingsBannerBlueback tilesCanvasCeramic tiles

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

Chipboard tilesComposite materialsComposite panelFibreboardGlass

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

Glazed tilesLaminated chipboardLeatherLenticular plasticMedium density fibreboard

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

MetalMirrorMuralPaperPlywood

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

YC3321R UV Flatbed with Roll to Roll Printer

PVC tilesSelf adhesive vinylStoneWood3D wallpaper
