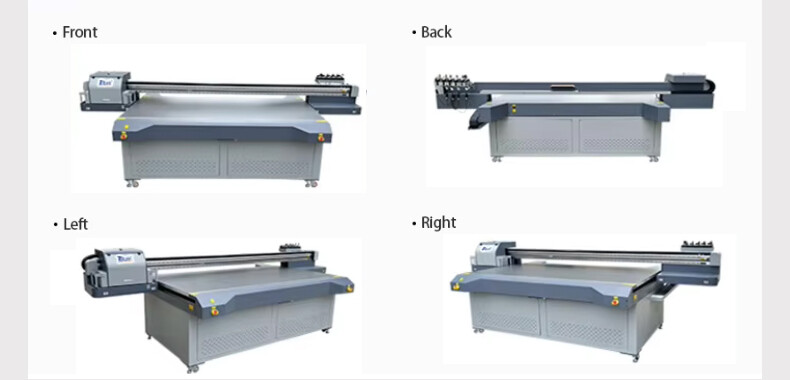

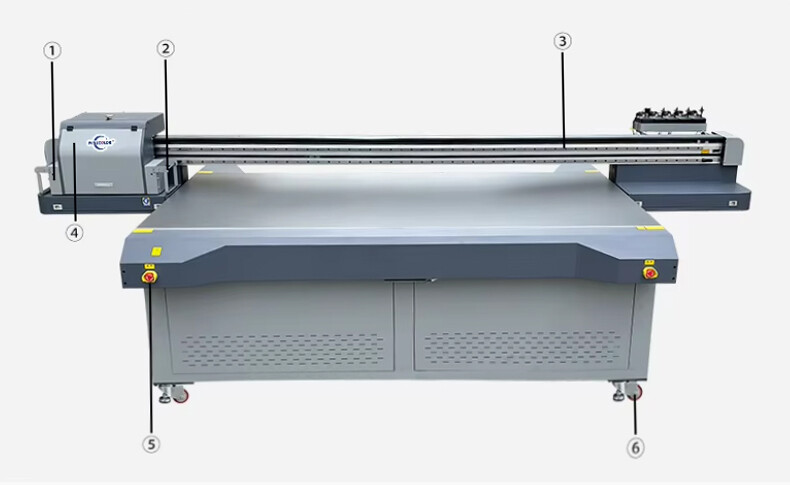

YC2513H
Standard series of wide-format flatbed UV printer. The main advantage is the relationship between economy and quality. The main applications of uv flatbed printer are: signs, display boards, signs, acrylic light boxes, pvc light boxes, high-end gifts, etc. Large plaque signs, large advertising displays, outdoor printing, small business cards, advertising,gifts, medals, medals, badges, badges, etc., are widely used.





Printing table size

 2500mm×1300mm



Max material weight

  50kg



Maximum material height

100mm








Parameter

Specifications
Product ModelYC2513H
Printhead TypeEPSON
Printhead Number2-4 heads
Ink CharacteristicsUV Curing Ink (VOA Free)
Ink reservoirsRefillable on the fly while printing 1000ml per color
LED UV Lampmore than 30000-hours life

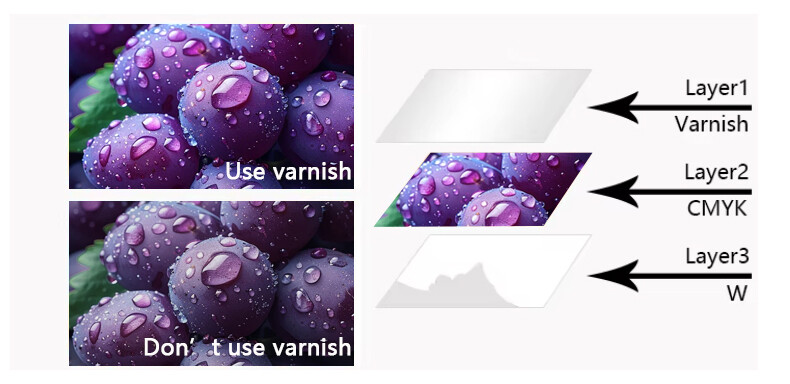

Printhead arrangementCMYKW V optional
Printhead Cleaning SystemAutomatic Cleaning System
Guide RailTaiwan HIWIN
Working TableVacuum Sucking
Printing Size2500*1300mm
Print InterfaceUSB2.0/USB3.0/Ethernet Interface
Media Thickness0-100mm
Life of printed image3 years(outdoor),10years(indoor)
File FormatTIFF,JPEG,Postscript,EPS,PDF etc.
Print Resolution& Speed720X600dpi4PASS4-16sqm/h
720X900dpi6PASS3-11sqm/h
720X1200dpi8PASS2-8sqm/h
Life of printed image3 years(outdoor),10years(indoor)
File FormatTIFF,JPEG,Postscript,EPS,PDF etc.
RIP SoftwarePhotoprint / RIP PRINT Optional
Power Supply220V 50/60Hz(10%)
Power3100W
Operation EnvironmentTemperature 20 to 30 ℃,Humidity 40% to 60%
Machine Dimension3.7*2.08*1.26m
Packing Dimension3.9*1.85*1.43m
Weight800kg
Warranty12 months exclude the consumables


Details

Adjustable Wheel.jpg

Aluminum Beam.jpg

DX5 printhead.png

Working platform.jpg

Guide Rail.jpg

Adjustable WheelAluminum BeamDX5 printhead Working platform
Guide Rail

Korea UV LED Lamp.JPG

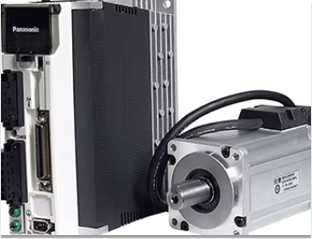

Leadshine Servo Motor.jpg

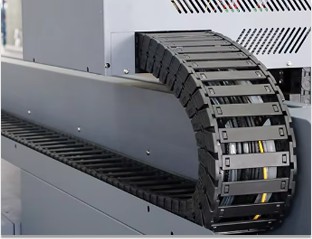

High Mute Drag Chain (2).JPG

Printhead Anti-collision.jpg

Tempreture control system for printheads plate.jpg

Korea UV LED Lamp

Leadshine Servo MotorHigh Mute Drag ChainPrinthead Anti-collisionTempreture control system for printheads plate

RIP Software

Print Speed and Quality to Suit Your Production Needs


Featuring twelve high performance inkjet printheads in a staggered three row arrangement,

the IU-1000F prints edge-to edge on thin or thick boards.

 Meet fast turnaround times or produce high end signs and displays with multiple speed and performance options.



DX7 print head version






1H4C_4C
1H4C_2(4C)
1H4C_4C+W


I3200 print head version







1H4C_4C
1H4C_2(4C)
1H4C_4C+W
1H4C_4C+W+V1H4C_2(4C+W)






1H4C_3(4C)1H4C_4(4C)




PRINTING SPEED:

Production quality          35sqm/h


High quality
25sqm/h


Super high-quality20sqm/h



 Application

Armstrong cellings.jpg


Blueback tiles.jpg


Ceramic tiles.jpg

Armstrong cellingsBannerBlueback tilesCanvasCeramic tiles

Chipboard tiles.jpg

Composite materials.jpg

Composite panel.jpg



Chipboard tilesComposite materialsComposite panelFibreboardGlass

Glazed tiles.jpg

Laminated chipboard.jpg


Lenticular plastic.jpg

Medium density fibreboard.jpg

Glazed tilesLaminated chipboardLeatherLenticular plasticMedium density fibreboard






MetalMirrorMuralPaperPlywood

PVC tiles.jpg

Self adhesive vinyl.jpg



3D wallpaper.jpg

PVC tilesSelf adhesive vinylStoneWood3D wallpaper
