YC2030L
Professional series of wide-format flatbed UV printer. The main advantages of this series are photographic print quality, high-speed printing, as well as accurate color transmission. It adopts Ricoh printhead, variable ink drop technology, printing format: 2.0m*3.0m, has a number of high-tech patents, automatic height measurement, automatic white jump, adjustable UV power, intelligent RIP, automatic positioning, and more A printing mode, anti-static, nozzle protection device to help customers use smarter. Industrial-grade Ricoh UV flatbed printers are fast, accurate and stable.






Printing table size

 2000mm×3000mm


Max material weight

 50kg


Maximum material height

100mm





Parameter

Specifications
Product ModelYC2030L
Printhead TypeRICOH GEN5/GEN6/KM1024I/SPT1024GS
Printhead Number2-8 heads
Ink CharacteristicsUV Curing Ink (VOC Free)
Ink reservoirsRefillable on the fly while printing/2500ml per color
LED UV Lampmore than 30000-hours life made in Korea
Printhead arrangementCMYK LC LM W V Optional
Printhead Cleaning SystemAutomatic Cleaning System
Guide RailTAIWAN HIWIN/THK Optional
Working TableVacuum Sucking
Printing Size2000*3000mm
Print InterfaceUSB2.0/USB3.0/Ethernet Interface
Media Thickness0-100mm
Print Resolution& Speed720X600dpi4PASS15-33sqm/h(GEN6 40% faster than this speed)
720X900dpi6PASS10-22sqm/h
720X1200dpi8PASS8-18sqm/h
Life of printed image3 years(outdoor),10years(indoor)
File FormatTIFF,JPEG,Postscript,EPS,PDF etc.
RIP SoftwarePhotoprint / RIP PRINT Optional
Power Supply220V 50/60Hz(10%)
Power3100W
Operation EnvironmentTemperature 20 to 30 ℃,Humidity 40% to 60%

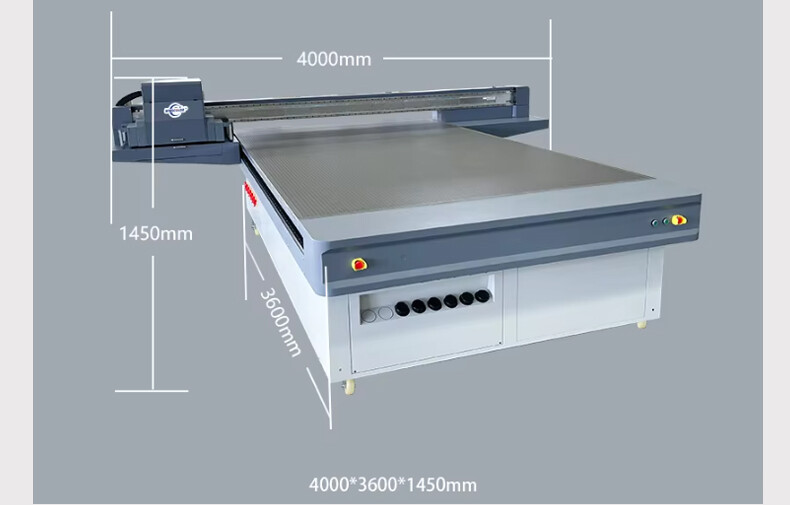

Machine Dimension4*3.6*1.45m
Packing Dimension4.04*2.2*1.24m       3.66*0.7*0.8m
Weight1500kg
Warranty12 months exclude the consumables


Details

Adjustable Wheel.jpg

Aluminum Beam.jpg

g5 printhead.jpg

Working platform.jpg

Guide Rail .jpg

Adjustable WheelAluminum BeamGEN5 Printhead Working platform
Guide Rail

gen6 printhead.jpg

Leadshine Servo Motor.jpg

Korea UV LED Lamp.jpg

Secondary Cartridge.jpg

Tempreture control system for printheads plate.jpg

GEN6 printhead

Leadshine Servo MotorKorea UV LED LampSecondary CartridgeTempreture control system for printheads plate

RIP Software

Print Speed and Quality to Suit Your Production Needs


Featuring twelve high performance inkjet printheads in a staggered three row arrangement,

the IU-1000F prints edge-to edge on thin or thick boards.

 Meet fast turnaround times or produce high end signs and displays with multiple speed and performance options.



8 Front Plate (Spray Plate: SATA-8)







1H2C_4C1H2C_6C1H2C_4C+2WV1H2C_6C+2WV1H2C_2(4C)






1H2C_2(6C)1H2C_2(4C+WV)1H2C_2(6C+WV)1H2C_3(4C)1H2C_4(4C)






1H2C_4C_CWCV2H1C_4C_4WV2H1C_2(4C)



PRINTING SPEED:

Production quality          50sqm/h


High quality
40sqm/h


Super high-quality30sqm/h



 Application

Armstrong cellings.jpg


Blueback tiles.jpg


Ceramic tiles.jpg

Armstrong cellingsBannerBlueback tilesCanvasCeramic tiles

Chipboard tiles.jpg

Composite materials.jpg

Composite panel.jpg



Chipboard tilesComposite materialsComposite panelFibreboardGlass

Glazed tiles.jpg

Laminated chipboard.jpg


Lenticular plastic.jpg

Medium density fibreboard.jpg

Glazed tilesLaminated chipboardLeatherLenticular plasticMedium density fibreboard






MetalMirrorMuralPaperPlywood

PVC tiles.jpg

Self adhesive vinyl.jpg



3D wallpaper.jpg

PVC tilesSelf adhesive vinylStoneWood3D wallpaper
