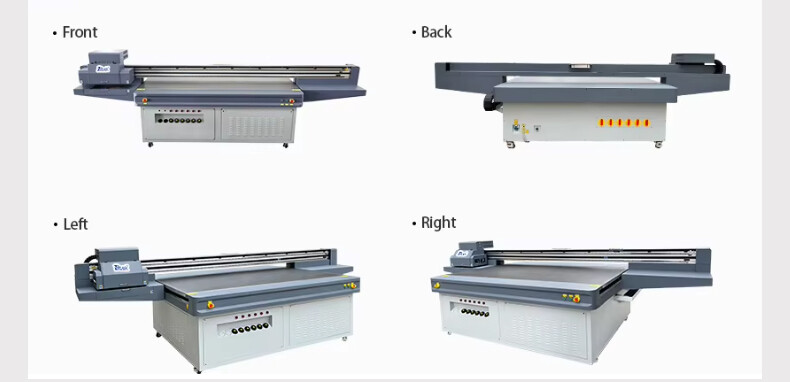

YC2513L
Standard series of wide-format flatbed UV printer. The main advantage is the relationship between economy and quality. The main applications of uv flatbed printer are: signs, display boards, signs, acrylic light boxes, pvc light boxes, high-end gifts, etc. Large plaque signs, large advertising displays, outdoor printing, small business cards, advertising,gifts, medals, medals, badges, badges, etc., are widely used.







Printing Table Size

2500mm×1300mm




Max Material Weight

  50kg




Maximum Material Height

100mm




Parameter

Specifications
Product ModelYC2513L
Printhead TypeRICOH GEN5/GEN6/KM1024I/SPT1024GS
Printhead Number3-8 heads
Ink CharacteristicsUV Curing Ink (VOC Free)
Ink reservoirsRefillable on the fly while printing/2500ml per color
LED UV Lampmore than 30000-hours life made in Korea
Printhead arrangementCMYK LC LM W V Optional
Printhead Cleaning SystemAutomatic Cleaning System
Guide RailTAIWAN HIWIN/THK Optional
Working TableVacuum Sucking
Printing Size2500*1300mm
Print InterfaceUSB2.0/USB3.0/Ethernet Interface
Media Thickness0-100mm
Print Resolution& Speed720X600dpi4PASS15-33sqm/h(GEN6 40% faster than this speed)
720X900dpi6PASS10-22sqm/h
720X1200dpi8PASS8-18sqm/h
Life of printed image3 years(outdoor),10years(indoor)
File FormatTIFF,JPEG,Postscript,EPS,PDF etc.
RIP SoftwarePhotoprint / RIP PRINT Optional
Power Supply220V 50/60Hz(10%)
Power3100W
Operation EnvironmentTemperature 20 to 30 ℃,Humidity 40% to 60%

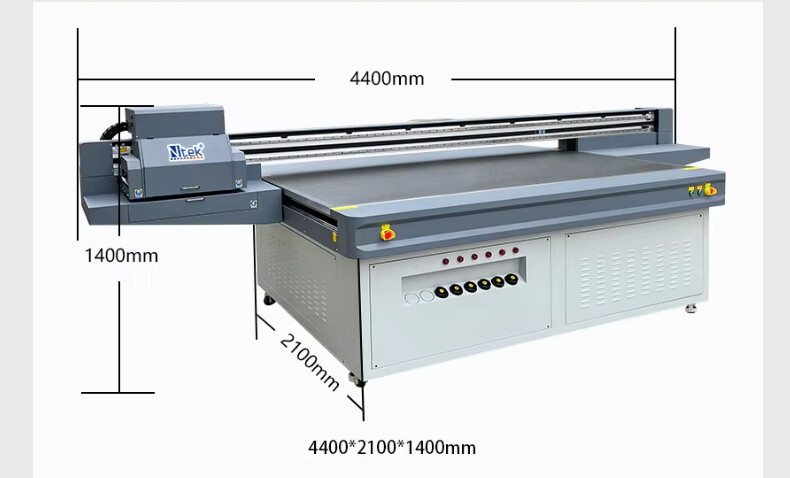

Machine Dimension2.1*4.4*1.4mm
Packing Dimension4.6*2.3*1.65mm
Weight1200kg
Warranty12 months exclude the consumables


Details

Adjustable Wheel.jpg

Aluminum Beam.jpg

g5 printhead.jpg

Working platform.jpg

Guide Rail .jpg

Adjustable WheelAluminum BeamGEN5 Printhead Working platform
Guide Rail

Korea UV LED Lamp.jpg

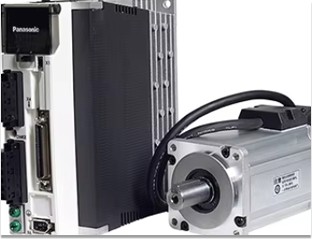

Leadshine Servo Motor.jpg

Printhead Anti-collision.jpg

Secondary Cartridge.jpg

Tempreture control system for printheads plate.jpg

Korea UV LED LampLeadshine Servo MotorPrinthead Anti-collisionSecondary CartridgeTempreture control system for printheads plate


RIP Software

Print Speed and Quality to Suit Your Production Needs


Featuring twelve high performance inkjet printheads in a staggered three row arrangement,

the IU-1000F prints edge-to edge on thin or thick boards.

 Meet fast turnaround times or produce high end signs and displays with multiple speed and performance options.



8 Front Plate (Spray Plate: SATA-8)







1H2C_4C1H2C_6C1H2C_4C+2WV1H2C_6C+2WV1H2C_2(4C)






1H2C_2(6C)1H2C_2(4C+WV)1H2C_2(6C+WV)1H2C_3(4C)1H2C_4(4C)






1H2C_4C_CWCV2H1C_4C_4WV2H1C_2(4C)



PRINTING SPEED:

Production quality          35sqm/h


High quality
25sqm/h


Super high-quality20sqm/h



 Application

Armstrong cellings.jpg


Blueback tiles.jpg


Ceramic tiles.jpg

Armstrong cellingsBannerBlueback tilesCanvasCeramic tiles

Chipboard tiles.jpg

Composite materials.jpg

Composite panel.jpg



Chipboard tilesComposite materialsComposite panelFibreboardGlass

Glazed tiles.jpg

Laminated chipboard.jpg


Lenticular plastic.jpg

Medium density fibreboard.jpg

Glazed tilesLaminated chipboardLeatherLenticular plasticMedium density fibreboard






MetalMirrorMuralPaperPlywood

PVC tiles.jpg

Self adhesive vinyl.jpg



3D wallpaper.jpg

PVC tilesSelf adhesive vinylStoneWood3D wallpaper
