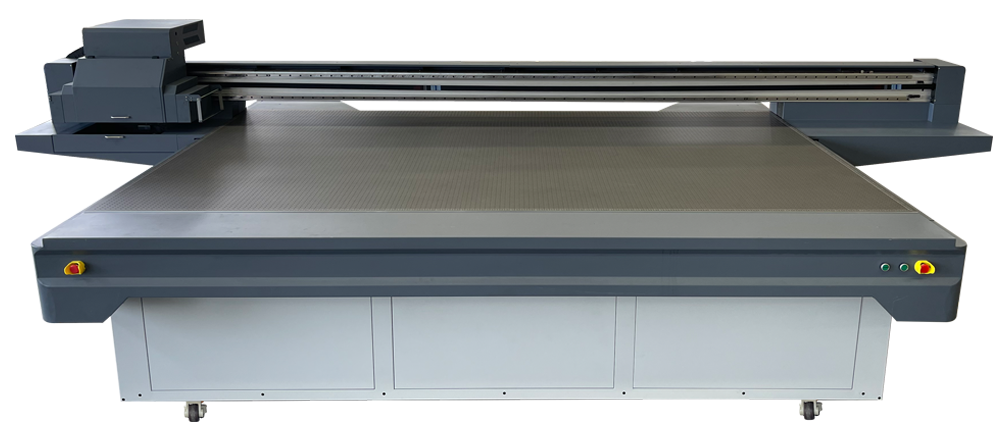

YC3321L
Professional series of wide-format flatbed UV printer. The main advantages of this series are photographic print quality, high-speed printing, as well as accurate color transmission. It has better print quality and better ink curation. Curing system UV lamp or High-intensity powerful UV-LED can be chosen.Cost-effective solution to any flat materials printing needs.






Printing table size

 2500mm×1300mm



Max material weight

  50kg



Maximum material height

100mm






Parameter

Specifications
Product ModelYC3321L
Printhead TypeRICOH GEN5/GEN6/KM1024I/SPT1024GS
Printhead Number2-8 heads
Ink CharacteristicsUV Curing Ink (VOC Free)
Ink reservoirsRefillable on the fly while printing/2500ml per color
LED UV Lampmore than 30000-hours life made in Korea
Printhead arrangementCMYK LC LM W V Optional
Printhead Cleaning SystemAutomatic Cleaning System
Guide RailTAIWAN HIWIN/THK Optional
Working TableVacuum Sucking
Printing Size3300*2100mm
Print InterfaceUSB2.0/USB3.0/Ethernet Interface
Media Thickness0-100mm
Print Resolution& Speed720X600dpi4PASS15-33sqm/h(GEN6 40% faster than this speed)
720X900dpi6PASS10-22sqm/h
720X1200dpi8PASS8-18sqm/h
Life of printed image3 years(outdoor),10years(indoor)
File FormatTIFF,JPEG,Postscript,EPS,PDF etc.
RIP SoftwarePhotoprint / RIP PRINT Optional
Power Supply220V 50/60Hz(10%)
Power3100W
Operation EnvironmentTemperature 20 to 30 ℃,Humidity 40% to 60%

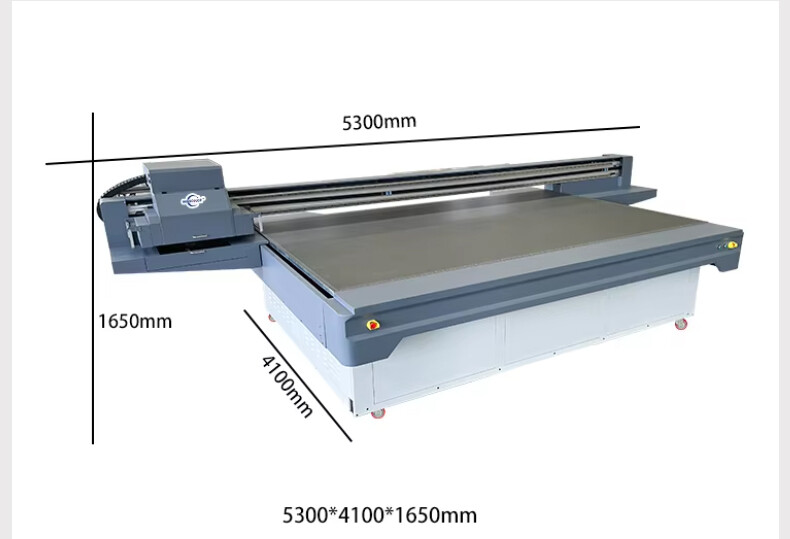

Machine Dimension5.3*4.1*1.65m
Packing Dimension5.52*2.25*1.55m 4.3*0.85*1.1m
Weight1800kg
Warranty12 months exclude the consumables

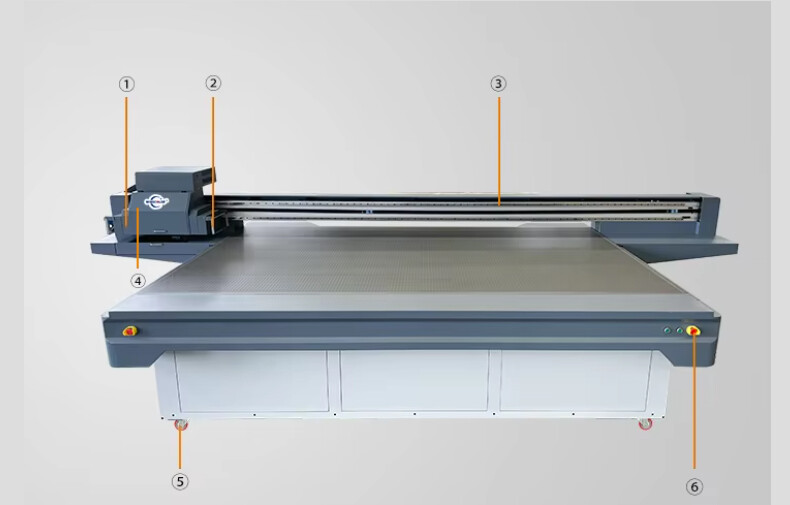

Details

Adjustable Wheel.jpg

Aluminum Beam.jpg

g5 printhead.jpg

Working platform.jpg

THK Guide Rail.jpg

Adjustable WheelAluminum BeamGEN5 PrintheadWorking platformTHK Guide Rail

gen6 printhead.jpg

Korea UV LED Lamp.jpg

Tempreture control system for printheads plate.jpg

Secondary Cartridge.jpg

Printhead Anti-collision.jpg

GEN6 printhead

Korea UV LED LampTempreture control system for printheads plateSecondary CartridgePrinthead Anti-collision


RIP Software

Print Speed and Quality to Suit Your Production Needs


Featuring twelve high performance inkjet printheads in a staggered three row arrangement,

the IU-1000F prints edge-to edge on thin or thick boards.

 Meet fast turnaround times or produce high end signs and displays with multiple speed and performance options.



8 Front Plate (Spray Plate: SATA-8)







1H2C_4C1H2C_6C1H2C_4C+2WV1H2C_6C+2WV1H2C_2(4C)






1H2C_2(6C)1H2C_2(4C+WV)1H2C_2(6C+WV)1H2C_3(4C)1H2C_4(4C)






1H2C_4C_CWCV2H1C_4C_4WV2H1C_2(4C)



PRINTING SPEED:

Production quality          50sqm/h


High quality
40sqm/h


Super high-quality30sqm/h



 Application

Armstrong cellings.jpg


Blueback tiles.jpg


Ceramic tiles.jpg

Armstrong cellingsBannerBlueback tilesCanvasCeramic tiles

Chipboard tiles.jpg

Composite materials.jpg

Composite panel.jpg



Chipboard tilesComposite materialsComposite panelFibreboardGlass

Glazed tiles.jpg

Laminated chipboard.jpg


Lenticular plastic.jpg

Medium density fibreboard.jpg

Glazed tilesLaminated chipboardLeatherLenticular plasticMedium density fibreboard






MetalMirrorMuralPaperPlywood

PVC tiles.jpg

Self adhesive vinyl.jpg



3D wallpaper.jpg

PVC tilesSelf adhesive vinylStoneWood3D wallpaper
