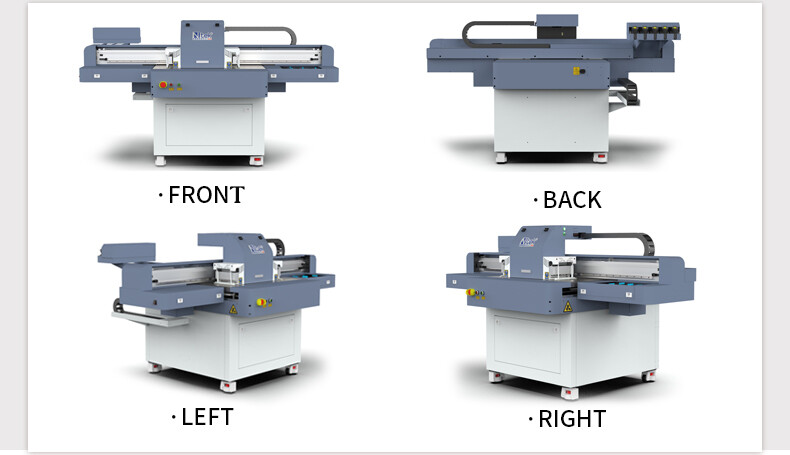

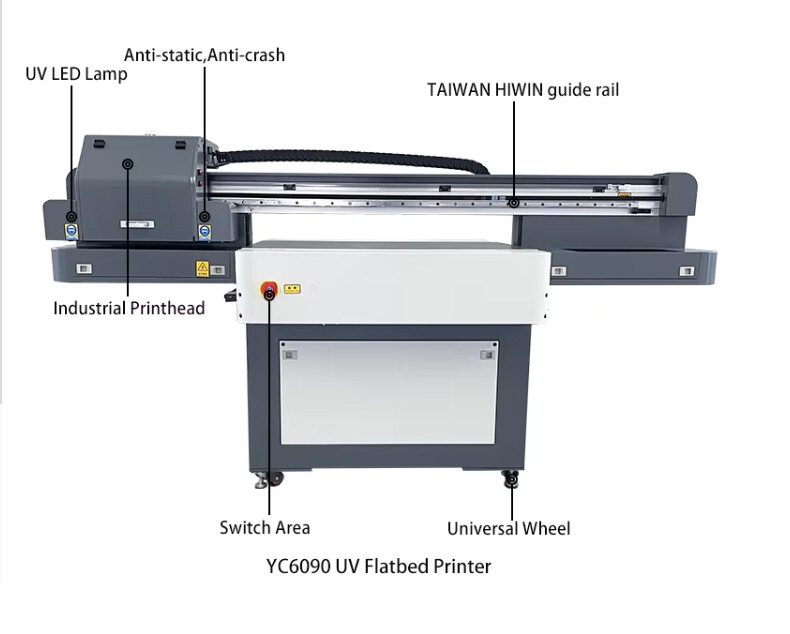

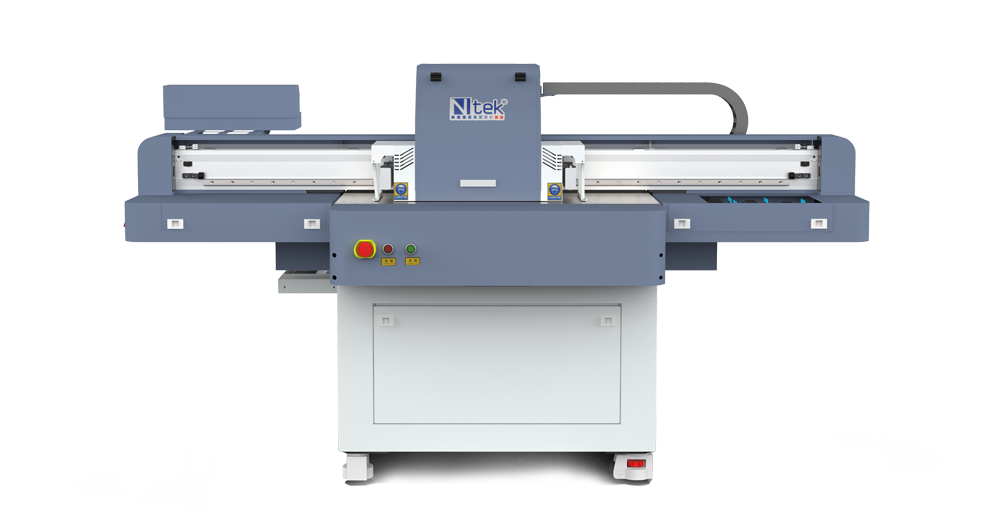

YC6090
Standard series of small-format flatbed UV printer. The main advantage is the relationship between economy and quality. It has passed the European Union CE certification, the quality is more guaranteed.Ideal for printing small fonts and images. The machine is completely welded, which allows stability and a more accurate impression. Curing system UV lamp or High-intensity powerful UV-LED can be chosen.The printing height of the equipment can be customized according to the actual situation.





Printing table size

 900mm×600mm


Max material weight

 50kg


Maximum material height

100mm





Parameter

Specifications
Product ModelYC6090
Printhead TypeEPSON
Printhead Number2-4 heads
Ink CharacteristicsUV Curing Ink (VOA Free)
Ink reservoirsRefillable on the fly while printing 1000ml per color
LED UV Lampmore than 30000-hours life

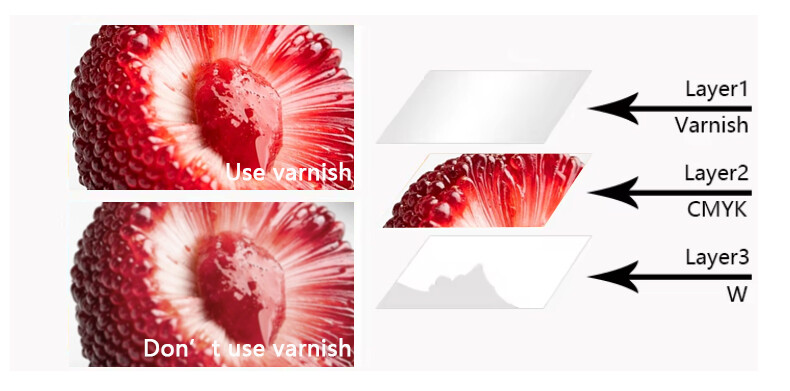

Printhead arrangementCMYKW V optional
Printhead Cleaning SystemAutomatic Cleaning System

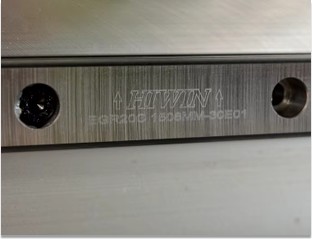

Guide RailTaiwan HIWIN

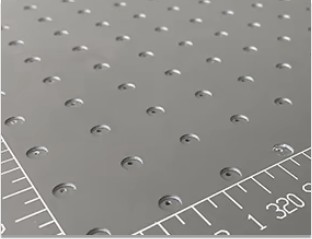

Working TableVacuum Sucking
Printing Size900*600mm
Print InterfaceUSB2.0/USB3.0/Ethernet Interface
Media Thickness0-100mm
Life of printed image3 years(outdoor),10years(indoor)
File FormatTIFF,JPEG,Postscript,EPS,PDF etc.
Print Resolution& Speed720X600dpi4PASS4-16sqm/h
720X900dpi6PASS3-11sqm/h
720X1200dpi8PASS2-8sqm/h
Life of printed image3 years(outdoor),10years(indoor)
File FormatTIFF,JPEG,Postscript,EPS,PDF etc.
RIP SoftwarePhotoprint/RIP PRINT Optional
Power Supply220V 50/60Hz(10%)
Power3100W
Operation EnvironmentTemperature 20 to 30 ℃,Humidity 40% to 60%

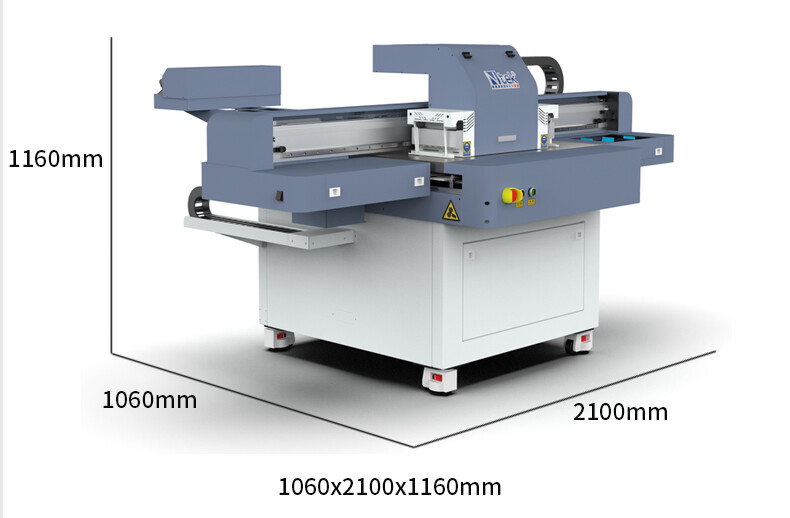

Machine Dimension1060*2100*1160mm
Packing Dimension2435*1225*1335mm
Weight400kg
Warranty12 months exclude the consumables


Details

Adjustable Holler.jpg

Aluminum Beam.jpg

Guide Rail .jpg

High Mute Drag Chain.jpg

Ink Ccharacteristics.jpg

Adjustable HollerAluminum BeamGuide RailHigh Mute Drag ChainInk Ccharacteristics

Korea UV LED Lamp.jpg

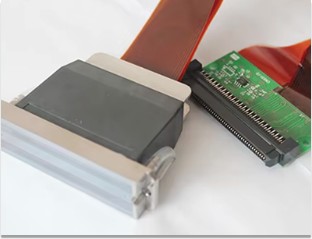

dx7 printhead.png

Lift cap station system.jpg

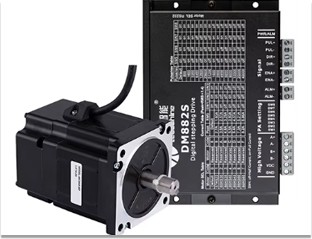

Leadshine Servo Motor.jpg

Printhead Anti-Colision.jpg

Korea UV LED Lamp

DX7 printheadLift cap station systemLeadshine Servo MotorPrinthead Anti-Colision

RIP Software

Print Speed and Qualityto Suit Your Production Needs


Featuring twelve high performance inkjet printheads in a staggered three row arrangement,

the IU-1000F prints edge-to edge on thin or thick boards.

 Meet fast turnaround times or produce high end signs and displays with multiple speed and performance options.


DX7 print head version






1H4C_4C
1H4C_2(4C)
1H4C_4C+W


I3200 print head version







1H4C_4C
1H4C_2(4C)
1H4C_4C+W
1H4C_4C+W+V1H4C_2(4C+W)






1H4C_3(4C)1H4C_4(4C)




PRINTING SPEED:

Production quality          20sqm/h


High quality
15sqm/h


Super high-quality10sqm/h


 Application

Armstrong cellings.jpg


Blueback tiles.jpg


Ceramic tiles.jpg

Armstrong cellingsBannerBlueback tilesCanvasCeramic tiles

Chipboard tiles.jpg

Composite materials.jpg

Composite panel.jpg



Chipboard tilesComposite materialsComposite panelFibreboardGlass

Glazed tiles.jpg

Laminated chipboard.jpg


Lenticular plastic.jpg

Medium density fibreboard.jpg

Glazed tilesLaminated chipboardLeatherLenticular plasticMedium density fibreboard






MetalMirrorMuralPaperPlywood

PVC tiles.jpg

Self adhesive vinyl.jpg



3D wallpaper.jpg

PVC tilesSelf adhesive vinylStoneWood3D wallpaper
